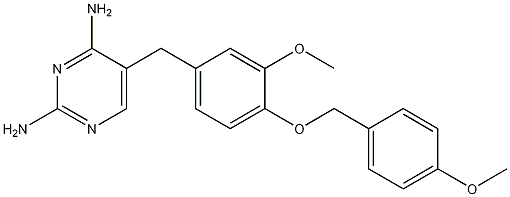

Fig. 1 · Structure

Documents & Downloads

GW2580

Cat. No. A11959 CAS 870483-87-7

CSF-1R inhibitor

GW2580 is a small-molecule, ATP-competitive inhibitor of cFMS kinase.

In Stock

Publications for GW2580

2 publications citing this product

  1. Ravikanth Maddipati, .et al. , bioRxiv, 2021, February 01
  2. Liu M, .et al. , Nat Immunol, 2019, Jan 21 PMID: 30664738

Free Aliquoting for Your Order

Tell us your preferred amount per vial. We’ll confirm the options.

Biological Activity

Bioactivity / Mechanism

GW2580 inhibited CSF1R kinase activity with a reported IC50 of 52.4 ± 6.1 nM in an ADP-Glo assay. This assay-specific value does not establish kinome-wide selectivity. [1]

Literature-reported observations and conditions; not Adooq-tested protocols or general treatment recommendations.

Cellular Effect

Cell Line Activity Value Description Reference
A549 IC50 > 30 μM Growth inhibition of serum-stimulated human A549 cells after 3 days by spectrophotometry [PMID: 16249345]
BT-474 IC50 21 μM Growth inhibition of serum-stimulated human BT474 cells after 3 days by spectrophotometry [PMID: 16249345]
HFF IC50 > 30 μM Growth inhibition of serum-stimulated HFF after 3 days by spectrophotometry [PMID: 16249345]
HN5 IC50 29 μM Growth inhibition of serum-stimulated human HN5 cells after 3 days by spectrophotometry [PMID: 16249345]
HUVEC IC50 > 10 μM Growth inhibition of bFGF-stimulated HUVEC after 3 days by spectrophotometry [PMID: 16249345]
HUVEC IC50 12 μM Growth inhibition of VEGF-stimulated HUVEC after 3 days by spectrophotometry [PMID: 16249345]
MDA-MB-231 IC50 > 30 μM Growth inhibition of serum-stimulated human MDA231 cells after 3 days by spectrophotometry [PMID: 16249345]
Monocyte IC50 0.47 μM Growth inhibition of CSF-1-stimulated freshly isolated human monocytes after 3 days by spectrophotometry [PMID: 16249345]
NCI-N87 IC50 > 30 μM Growth inhibition of serum-stimulated human NCI-N87 cells after 3 days by spectrophotometry [PMID: 16249345]
NFS-60 IC50 0.33 μM Growth inhibition of CSF1-stimulated mouse M-NFS-60 cells after 3 days by spectrophotometry [PMID: 16249345]
NFS-60 GI50 94 nM Growth inhibition of mouse NFS60 cells after 72 hrs by CellTiter96 AQueous one solution cell proliferation assay [PMID: 30522957]
NSO IC50 13.5 μM Growth inhibition of serum-stimulated mouse NSO cells after 3 days by spectrophotometry [PMID: 16249345]
Sf21 IC50 3 nM Antagonist activity at recombinant human N-terminal His6-tagged FMS (538 to end residues) expressed in baculovirus infected Sf21 insect cells using IGF-R1tide as substrate in presence of [gamma-33P]-ATP or [gamma-32P]-ATP [PMID: 30522957]

13 records · Scroll to view more

In Vitro Studies

In human osteoclast cultures, GW2580 reduced bone resorption together with osteoclast numbers during a three-day exposure. The design does not separate reduced cell number from reduced resorption per surviving cell. [2]

Primary mouse microglia pretreated with 5 µM GW2580 showed increased cell death after hydrogen peroxide challenge, indicating that cellular effects depend on the stress context. [3]

CSF1R enzyme inhibition by GW2580 alone

Biochemical assay · Purchased CSF1R enzyme (SignalChem); ADP-Glo kinase assay [1]

GW2580 inhibited CSF1R kinase activity in a dose-response assay. Fragment combinations and computational predictions are excluded.

Measured endpoints — not treatment concentrations
EndpointReported resultReference
Inhibition of CSF1R-catalyzed ADP formationIC50 52.4 ± 6.1 nM[1]

Literature-Reported Treatment Conditions

Treatment concentration
0 to 100 µM final compound concentrations described in SI (3-fold serial dilution)
Exposure duration
30 min compound/enzyme preincubation; 40 min kinase reaction
Method
Enzymatic ADP formation; ATP reagent described as 200 µM (4X).
Vehicle
Stocks and compound dilution series prepared in DMSO; final assay DMSO percentage not explicitly specified.
Co-treatment
GW2580 alone (Figure 3A).
Reported limits
GW2580 supplier, salt/form and analytical purity not specified in the read scope; exact n and ± definition for this IC50 not specified.
Methods and source locations

Compound reported in the paper: GW2580

Published GW2580 experiment; applicability is to the named compound, not analytical validation of an Adooq batch.

Figure 3A; Results, Determination of Inhibitory Activity and Synergy Using In Vitro Kinase Assays; SI S2

Inhibition of CSF1R-catalyzed ADP formation: ADP-Glo; Hill-equation fit. SI describes two to four independent assays generally; exact Figure 3A n and meaning of ±6.1 are not defined in the read scope. — Figure 3A and caption; SI S2, Kinase assay optimization and IC50 determination

Human osteoclast number and bone resorption

Cell-based study · Human PBMC-derived osteoclast cultures from a healthy female donor; CSF-1 and RANKL differentiation [2]

GW2580 reduced bone resorption and osteoclast numbers in the same culture design; reduced resorption cannot be assigned solely to a per-cell functional effect.

Measured endpoints — not treatment concentrations
EndpointReported resultReference
Bone slice surface resorbed on day 13Resorbed area (%) 0 µM: 26.6 ± 4.7%; 1 µM: 3.3 ± 0.6%; 3 µM: 1.5 ± 0.4%; 10 µM: 1.2 ± 0.6%[2]
23C6-positive cells with >3 nuclei per cm² of boneOsteoclast count 0 µM: 854 ± 122; 1 µM: 244 ± 57; 3 µM: 120 ± 38; 10 µM: 34 ± 9[2]

Literature-Reported Treatment Conditions

Treatment concentration
1, 3 and 10 µM GW2580; 0 µM control. Differentiation used CSF-1 and RANKL, each 30 ng/ml.
Exposure duration
GW2580 added on day 10; resorption and cell numbers assessed on day 13.
Method
Human osteoclast bone-degradation assay; bone surface resorption and immunocytochemical cell counts.
Vehicle
DMSO stock diluted to 0.1% DMSO in all wells.
Co-treatment
CSF-1 and RANKL present in the osteoclast culture design.
Reported limits
One donor described; six cultures do not establish six independent donors.
Methods and source locations

Compound reported in the paper: GW2580

Published GW2580 experiment; applicability is to the named compound, not analytical validation of an Adooq batch.

Table 2 and footnotes; Materials and Methods, Human Osteoclast Bone-Degradation Assay

Bone slice surface resorbed on day 13: Mean ± SEM, six cultures; untreated cultures were statistical controls. Table marks P < 0.01 for each treated group. — Table 2, Bone slice resorbed column and footnotes

23C6-positive cells with >3 nuclei per cm² of bone: Mean ± SEM, six cultures; immunocytochemistry. Table marks P < 0.01 for each treated group. — Table 2, 23C6(+) cells (>3 nuclei) column and footnotes

GW2580 sensitization of primary microglia to peroxide

Cell-based study · Primary microglia from neonatal C57BL/6 mice [3]

GW2580 pretreatment increased peroxide-associated LDH release. This is a stress-dependent result, not evidence of uniform microglial depletion.

Measured endpoints — not treatment concentrations
EndpointReported resultReference
Cell death after hydrogen peroxide challengeLDH release Higher LDH release with GW2580 at higher peroxide concentrations; no exact numerical effect size extracted.[3]

Literature-Reported Treatment Conditions

Treatment concentration
5 µM GW2580; hydrogen peroxide 0–100 µM.
Exposure duration
48 h GW2580 pretreatment, followed by 4 h peroxide challenge.
Method
Primary microglia culture, imaging and supernatant LDH assay.
Vehicle
Medium control; an in vitro GW2580 solvent percentage is not specified in the read methods.
Co-treatment
Hydrogen peroxide challenge; paired cultures without GW2580 and zero-peroxide controls.
Reported limits
Supplier LC Labs G-5903 is specified in the shared compound/oral-treatment section; culture stock preparation and salt are not specified.
Methods and source locations

Compound reported in the paper: GW2580

Published GW2580 experiment; applicability is to the named compound, not analytical validation of an Adooq batch.

Figure 7C-D and caption; Materials and Methods, Primary Microglia Cultures and Microglia Susceptibility to ROS

Cell death after hydrogen peroxide challenge: Figure 7C-D; three independent experiments, at least duplicate per condition, representing 17 neonatal pups; mean ± SE. — Figure 7C-D and caption; Materials and Methods, Microglia Susceptibility to ROS

In Vivo Studies

In healthy mice, oral GW2580 at 80 mg/kg daily for eight days altered cortical microglial morphology without a significant reduction in the microglial counts shown in Figure 3C. [3]

In a syngeneic pancreatic tumor model, GW2580 alone did not suppress tumor outgrowth and blocked the antitumor effect of CpG treatment. This interaction limits generalized claims of antitumor benefit from macrophage inhibition. [4]

Microglial morphology after an eight-day oral regimen

Animal study · Healthy male and female C57BL/6J mice, 8–12 weeks [3]

Oral GW2580 changed microglial morphology without a significant microglial-count reduction in the examined regions.

Measured endpoints — not treatment concentrations
EndpointReported resultReference
Cortical Iba-1-positive microglial morphology and regional countsImaris morphology; cells/mm² Filament length increased; diameter, branches, branch points, segments and terminal points decreased. Figure 3C: no significant count change.[3]

Conditions shared by the study groups

Route
Oral gavage
Frequency
Daily
Treatment course
8 days
Vehicle
200 µl of 0.1% Tween 80 and 0.5% hydroxymethyl propyl-cellulose, as named by authors
Study groups and reported outcomes
Group / doseComparatorObserved resultReference
GW2580 versus vehicle in healthy mice
80 mg/kg
Vehicle aloneCortical microglial branching decreased and filament length increased; Figure 3C showed no significant count change.[3]
GW2580 versus vehicle in healthy mice
Model: Male and female C57BL/6J mice, 8–12 weeks
Reported limits: Sex allocation for the Figure 3 subset not specified; morphology n=4–5 animals/group in caption.
Methods and source locations

Compound reported in the paper: GW2580

Published GW2580 experiment; applicability is to the named compound, not analytical validation of an Adooq batch.

Figure 3B-C and caption; Materials and Methods, Animals, GW2580 Treatment by Oral Gavage and Immunohistochemistry

Cortical Iba-1-positive microglial morphology and regional counts: Figure 3B: each point averages three cells/mouse, n=4–5 animals/group; mean ± SE. Figure 3C averages three pictures per point. — Figure 3B-C, caption; Immunohistochemistry methods

GW2580 versus vehicle in healthy mice · Figure 3B-C and caption; Materials and Methods, Animals and GW2580 Treatment by Oral Gavage

CSF1R inhibition opposed CpG antitumor activity

Animal study · Syngeneic subcutaneous PDAC.1 tumors in mice [4]

GW2580 reduced the macrophage response to CpG and abolished the CpG-associated tumor-growth inhibition. GW2580 alone did not suppress outgrowth; antibody and liposome controls supported the model-specific macrophage interpretation.

Measured endpoints — not treatment concentrations
EndpointReported resultReference
Tumor outgrowth and tumor-associated macrophage responseTumor growth curves; macrophage abundance GW2580 alone: no effect on outgrowth; GW2580 plus CpG: loss of CpG-associated tumor-growth inhibition.[4]
Study groups and reported outcomes
Group / doseComparatorObserved resultReference
GW2580 monotherapy control
160 mg/kg
Vehicle/no-depletion groupGW2580 alone did not affect tumor outgrowth in the reported comparison.[4]
GW2580 plus CpG
GW2580 160 mg/kg; CpG 50 µg/mouse
CpG alone and vehicle/no-depletion controlsGW2580 abrogated the CpG antitumor effect; tumor-associated macrophages were reduced relative to CpG alone.[4]
GW2580 monotherapy control
Model: Syngeneic PDAC.1 tumor-bearing mice
Route: Oral gavage
Frequency: Daily
Treatment course: Schedule schematic begins CSF1Ri on day 8 and continues through day 18
Vehicle: GW2580 formulation vehicle not specified in the read in vivo methods.
Reported limits: Age/sex and formulation vehicle not specified for this experiment in read scope.
GW2580 plus CpG
Model: Syngeneic PDAC.1 tumor-bearing mice
Route: GW2580 oral gavage; CpG intraperitoneal
Frequency: GW2580 daily; CpG every other day
Treatment course: CSF1Ri from day 8 through day 18 in schedule; CpG from day 10
Vehicle: CpG vehicle PBS; GW2580 formulation vehicle not specified.
Reported limits: No exact tumor-volume values inferred from curves.
Methods and source locations

Compound reported in the paper: GW2580

Published GW2580 experiment; applicability is to the named compound, not analytical validation of an Adooq batch.

Figure 3a-c and caption; Figure 2a schedule; Methods, Mice and In vivo studies

Tumor outgrowth and tumor-associated macrophage response: Figure 3c mean ± s.e.m.; no-depletion vehicle n=5, CpG n=10; GW2580 n=5, GW2580+CpG n=9. Figure 3a-c representative of at least two independent experiments. — Figure 3a-c and caption; Results, macrophage-depletion paragraph

GW2580 monotherapy control · Figure 3c; Figure 2a schedule; Methods, In vivo studies

GW2580 plus CpG · Figure 3a-c; Figure 2a; Methods, In vivo studies

Specifications

Manufacturer Adooq Bioscience
Actions Inhibitor
CAS Number 870483-87-7
Applications CSF-1R inhibitor
Formula C20H22N4O3
Molecular Weight 366.41
SMILES
COC1=CC=C(C=C1)COC2=C(C=C(C=C2)CC3=CN=C(N=C3N)N)OC

Storage & Solubility

In Vitro Solubility

Reported Solubility

SolventReported Solubility
DMSO 48 mg/mL (131 mM)
Water Insoluble
Ethanol Insoluble

Preparing Stock Solutions

Stock preparation is unavailable for this product molecular weight.

Calculated stock concentrations do not establish solvent solubility. Refer to the reported solubility data for experimental guidance.

In Vivo Preparation

Concentration
4 mg/mL
Vehicle
5% DMSO+30% PEG 300+5% Tween 80+ddH2O

Storage

Store powder at -20°C, keep desiccated.
In powder form, the chemical is stable for 36 months.
In solution, store at -20°C and use within 1 month to prevent loss of potency. Aliquot to avoid multiple freeze/thaw cycles.

Research References

  1. [1] Tasneem M Vaid, Robel Demissie, Youngjin Kwon, et al. Synergistic Inhibition Guided Fragment-Linking Strategy and Quantitative Structure–Property Relationship Modeling To Design Inhalable Therapeutics for Asthma Targeting CSF1R ACS Omega (2023). PMID: 37323402 DOI: 10.1021/acsomega.3c00803 Source material
  2. [2] James G Conway, Brad McDonald, Janet Parham, et al. Inhibition of colony-stimulating-factor-1 signaling in vivo with the orally bioavailable cFMS kinase inhibitor GW2580 Proceedings of the National Academy of Sciences of the United States of America (2005). PMID: 16249345 DOI: 10.1073/pnas.0502000102 Source material
  3. [3] Katiria Soto-Diaz, Mario Vailati-Riboni, Allison Y Louie, et al. Treatment With the CSF1R Antagonist GW2580, Sensitizes Microglia to Reactive Oxygen Species Frontiers in Immunology (2021). PMID: 34899694 DOI: 10.3389/fimmu.2021.734349 Source material
  4. [4] Mingen Liu, Roddy S O’Connor, Sophie Trefely, et al. Metabolic rewiring of macrophages by CpG potentiates clearance of cancer cells and overcomes tumor-expressed CD47-mediated ‘don’t eat me signal’ Nature Immunology (2019). PMID: 30664738 DOI: 10.1038/s41590-018-0292-y Source material
